Products & Projects

>> AES67 Software Stack

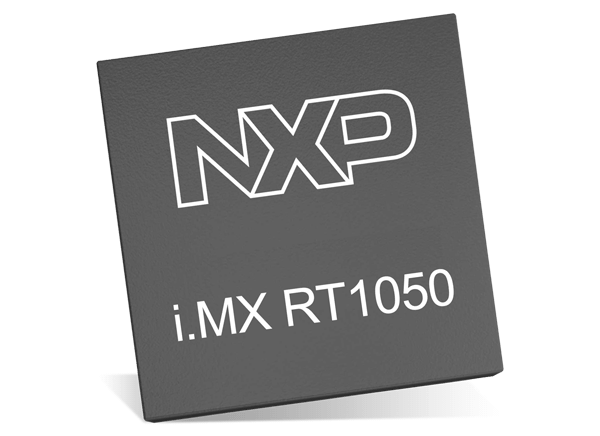

Welliver Tech’s AES67 Audio-over-IP software stack enables NXP i.MX RT microcontrollers to stream high-quality, synchronized audio over standard Ethernet networks. Designed for resource-constrained embedded systems, this solution delivers full AES67 compliance, including real-time audio transport, clock synchronization, and session discovery.

Ideal for professional audio equipment, intercoms, conferencing devices, and AV-over-IP endpoints, this software stack transforms NXP i.MX RT devices into fully interoperable AES67 audio nodes.

Key Features

Feature	Description
AES67 Compliant	RTP-based PCM audio streaming (16/24-bit, up to 48 kHz)
IEEE 1588-2008 (PTPv2)	Precise time synchronization for phase-accurate playout
Multicast Support	SAP/SDP session announcement and discovery
Low Latency	Configurable End-to-end latency with minimal jitter
Audio Interfaces	Supports SAI/I2S, SPDIF, or Ring Buffer I/O
Lightweight IP Stack	Based on lwIP with support for mDNS, multicast stream distribution
Real-Time Performance	Optimized for FreeRTOS or bare-metal execution on NXP i.MX RT 1050/1060
Web-Based Control	Configurable Web Interface for network and stream configuration and monitoring
Compact Footprint	Runs in <512 KB RAM; efficient use of CPU and peripherals
Connection Management	Simple web-based connection management with AES70 CM4 support on roadmap
Get in touch for more information	Feel free to discuss additional platform support or customization options.

>> Embedded AES67 Module

Wellivertech WT-M1062A

WT-M1062A is a small form factor MCU module designed to support professional audio applications. Featuring a mini-PCIe form factor and integrated Ethernet PHY and Flash, the WT-M1060A module is designed for simple build-in with a low BOM cost. Coupled with Welliver Tech’s AES67 stack and AES70 support, this module can provide a turn-key implementation of AES67 and AES70 control for Pro Audio or DIY Audiophile users.

Feature	Description
High-Speed Arm M7 core	High performance CPU with highly integrated peripheral set
Integrated Ethernet PHY	Built-in PHY eliminates complex differential PCB routing, just add a MagJack and a few passives
Onboard Power Management	Requires only 5v input and can supply 250ma at 3.3V for powering external devices
Built in Flash and PSRAM	8MB each of Flash and PSRAM for storing web assets and discovered sessions
Multiple Programming Options	Support for Ethernet OTA and USB-disk based firmware updates.
Robust	ROM-based recovery mode means module is virtually unbrickable.
Get in touch for more information	Feel free to discuss additional details, including ‘bring your own firmware’ options.

>> POE Network Amplifier reference design

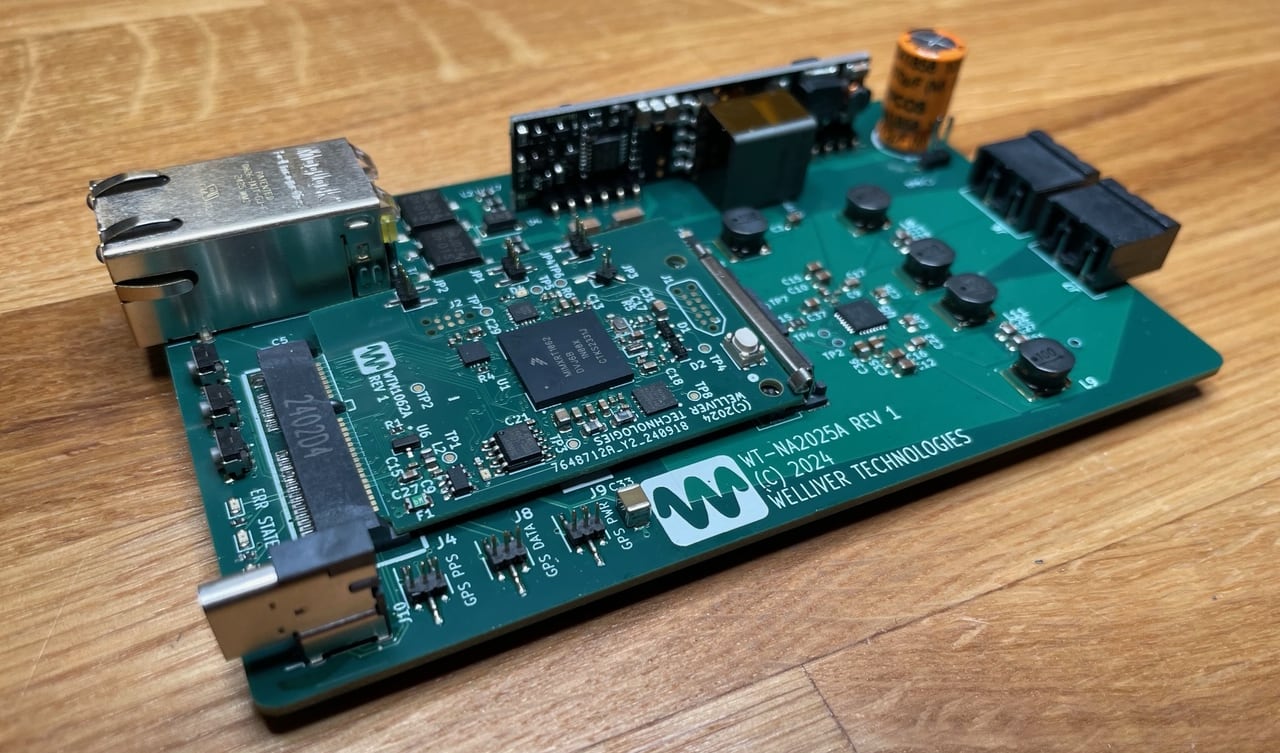

WT-NA2023 AES67/AES70 Networked Amplifier

The WT-NA2023 is a 23W dual channel POE+ enabled network amplifier demonstrating support for AES67 and AES70 remote control. The reference design is a low cost network 2-channel speaker amplifier supporting 1 or 2 AES67 streams, onboard biquad filters, AES70 control and more. Perfect for getting up to speed with Welliver Tech’s AES67 stack and WT-M1062A CPU module, and AES70 control interfaces.

>> POE Network Receiver reference design

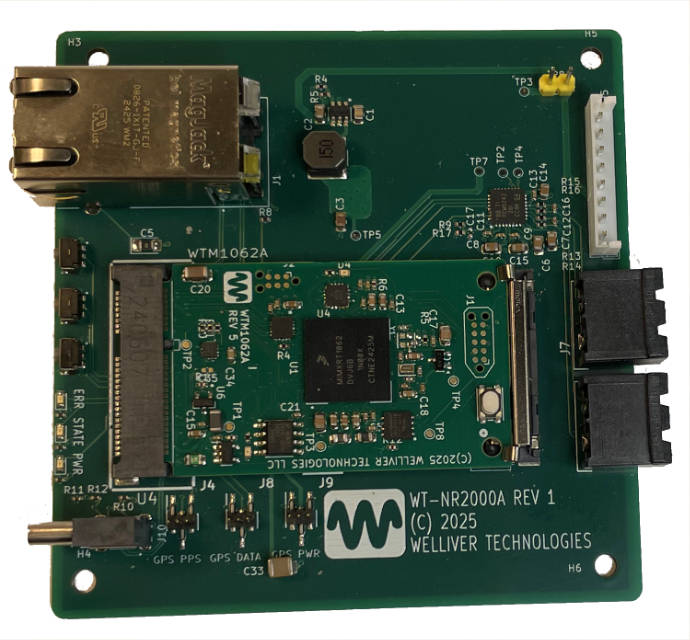

WT-NR2020A AES67/AES70 Networked Receiver

The WT-NR2020A is a 2-channel analog line out module demonstrating support for AES67 and AES70 remote control. The demo is a low cost, high quality network audio receiver supporting 1 or 2 AES67 streams, onboard biquad filters, AES70 control and more. Additionally, with pre-installed headers for popular Class-D amplifier modules, the WT-NA2000A allows for easy integration of Audio over IP in DIY audio projects.

>> AES70py - Python AES70 Library

Welliver Technologies is the development technical lead for AES70py.

The AES70py founding members recognised gaps exist for network engineers tasked to unify network systems that include OCA Devices.

Convergence of IT & AV

AES70py enables programmatic potential for IT systems of network services connected to OCA devices.

As adoption of AES70 accelerates in the Pro Audio sector, AES70py is an essential tool for Python software engineers.

Download AES70py

For IT professionals there have been limited options for a general purpose AES70 control software until now.

Use the AES70 Standard in Commercial, R&D, Education Sector or general projects, freely.

Visit https://aes70py.org/ for more information.
